Wedge Type Expansion Anchors

Trubolt

Red Head

Call For Price

Dependable, Heavy-Duty Wedge Anchor for Anchoring to Concrete

Quick Overview

  • 2006 International Building Code (IBC) Compliant.
  • Versatile fully threaded design is standard on sizes up to 3/4" diameter and 10" length.
  • Anchor diameter equals hole diameter.
  • Standard carbon and stainless steel anchors.
  • 360° contact with concrete assures full expansion for reliable working loads.
  • Non bottom-bearing, may be used in hole depth exceeding anchor length.
  • Can be installed through the work fixture, eliminating hole spotting.
  • Inspectable torque values, indicating proper installation.
Interested in this item or want more information?

Hours:

Phone: 501-513-1300

Email: sales@dsip-ar.com

Can't find what you want? Give us a call and we can help you find it.

Details

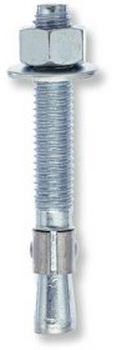

Trubolt® Wedge anchors feature a stainless steel expansion clip, threaded stud body, nut and washer.

Anchor bodies are made of plated carbon steel, hot-dipped galvanized carbon steel, type 304 stainless steel or type 316 stainless steel as identified in the drawings or other notations. The exposed end of the anchor is stamped to identify anchor length. Stampings should be preserved during installation for any subsequent embedment verification.

Use carbide tipped hammer drill bits made in accordance with ANSI B212.15-1994 to install anchors. Anchors are tested to ACI 355.2 and ICC-ES AC193. Anchors are listed by the following agencies as required by the local building code: ICC-ES, UL, FM, City of Los Angeles, California State Fire Marshal and Caltrans.

Additional Information


Manufacturer: Red Head
For More Information on the Wedge Type Expansion Anchors, [Click Here] to Link to Manufacturer Web Site
