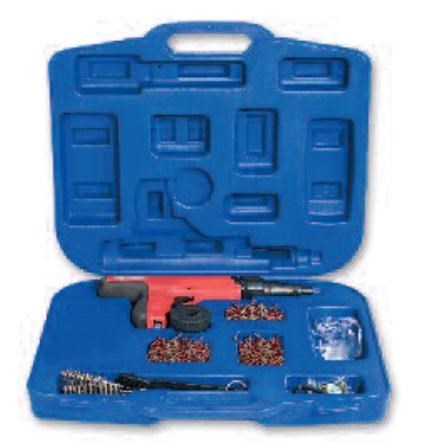

P3500 Tool – Blister Pack

P3500-52001

Anchors Powers DeWalt

Call For Price

52001 P3500 Tool – Blister Pack

Quick Overview


  • Description : P3500 Tool (Blister Pack)
  • Standard Box : 1
Interested in this item or want more information?

Hours:

Phone: 501-513-1300

Email: sales@dsip-ar.com

Can't find what you want? Give us a call and we can help you find it.

Details


P3500     Powder-actuated Semi-automatic Tool

Tool Description

The P3500 is a low velocity, semi-automatic .27 caliber tool which can be used to install .300 head drive pins, 8mm head drive pins and 1/4"-20 threaded studs, up to 3" in total length. The P3500 is designed for high speed and repetitive volume applications.


Technical Data :

  • Tool Body : Precision cast Aluminum
  • Tool Length : 13-5/8"
  • Tool Weight : 5 lbs.
  • Pin Length : 1/2" to 3" Total Length
  • Load Type : .27 Caliber 10 Load Strip and .27 Caliber Safety Strip
  • Power Level : Brown (2), Green (3), Yellow (4), Red (5)


    • General Applications and Uses :

  • Conduit Clip To Concrete
  • Electrical Fixture To Steel
  • Wood To Concrete
  • Concrete Forming
  • Wood To Steel
  • Commercial And Residential Construction
  • Electrical Fixture To Concrete


    • Ordering Information :

    Catalog NumberDescriptionStandard Box
    52000
      P3500 Tool (Deluxe Kit):
      • Safety Glasses, Disposable Ear Plugs
      • Allen Wrenches, Wire Brushes, Tool Lubricant
      • Spall Guard, Spare Parts
      • Pin Starter Kit:
          • .300 Headed Pins : (50) 1/2", (50) 3/4", (30) 3" with 7/8" washer
      • Case
    		1
    52001P3500 Tool (Blister Pack)1
    52106Piston Ring for the P35001
    52108Guide 2/F-3 for the P35001
    52110Base Plate 2/S-13 for the P3500/PA35001
    52120Shear Clip for the P35s/P3500/PA35001
    52112Piston Stop for the P3500/PA35001


    Piston for Installing 8mm Head Drive Pins :

    Catalog NumberDescriptionStandard Box
    52100Piston 2/DN-1 (for 8mm Head Drive Pins) for the P35001


    Limited Access Baseplates :

    Catalog NumberDescriptionStandard Box
    52114Guide 2/F-4 Limited Access for the P35001
    52116Baseplate 2/F-14-1 Limited Access for the P35001


    Pole Tools for Overhead Attachments :

    Catalog NumberDescriptionStandard Box
    500656' Di-electric Pole Tool1
    500668' Di-electric Pole Tool1


    View Product Specification

    View Submittals
    English

    View General Selection Guidelines

    View Performance Data

    View Manuals

    Additional Information

    Manufacturer: Anchors Powers DeWalt
    For More Information on the P3500 Tool – Blister Pack, [Click Here] to Link to Manufacturer Web Site
